Description

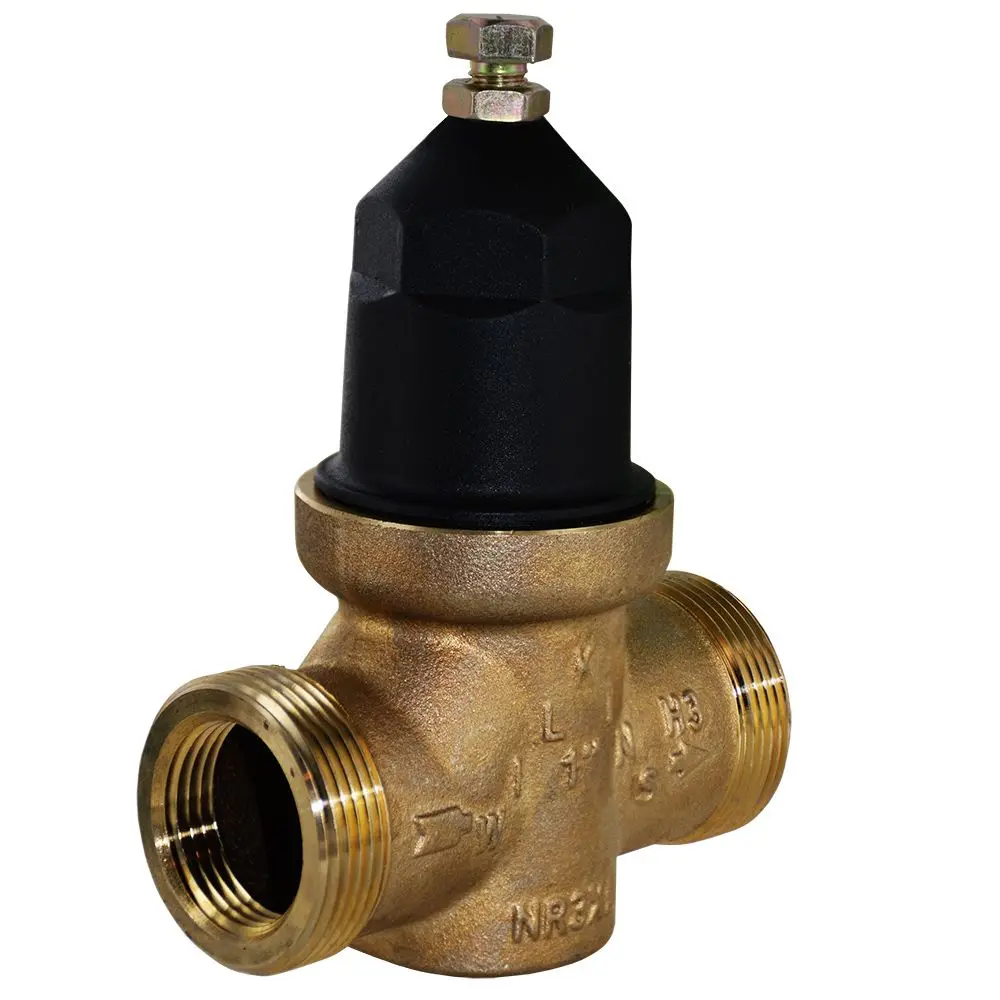

The Zurn PRV-10-LF-NR3XL Pressure Regulator is ideal for use in applications where a lead-free valve is required. This regulator has been designed for installation on water lines to reduce high inlet pressure to a lower outlet pressure, and features an integral strainer that makes it perfect for residential and commercial systems requiring frequent cleaning of sediment and debris.
Application:
Buildup of excessive system pressure caused by thermal expansion is prevented by the direct acting integral by-pass design. The regulator’s balance piston design ensures it will react in a smooth and responsive manner to changes in system flow demand, while providing protection from inlet pressure changes at the same time.
Features:
- Protects Plumbing System. The Watts LFX65BU reduces incoming water pressure for protection of plumbing system components and to reduce water consumption.
- Trusted & Certified. This product is ASSE® Listed 1003, IAPMO® Listed, CSA® Certified, NSF® Listed – Standard 61, Annex G*, and Certified to NSF/ANSI 372* by IAPMO R&T.
Specifications:
- Size: 1″ FNPT (Single Union)
- Maximum Inlet Pressure: 80 PSI as per UPC Code
- Maximum Working Water Pressure: 400 PSI
- Maximum Working Water Temperature: 140°F
- Reduced Pressure Range: 15 to 75 PSI
- Factory Preset: 50 PSI
- Cold Water Rated Temperature: 73.4°F @ 400 PSI
Materials:
- Main Valve Body: Cast bronze ASTM B 584, UNS C84400
- Bell Housing: UV resistant polymer composite
- Internals: Stainless steel, 300 Series
- Stem: Brass ASTM B 16
- Elastomers: EPDM (FDA approved), Buna nitrile (FDA approved)
- Cartridge: Delrin (NSF Listed)
- Springs: Oil temp wire, ASTM A 229
- Strainer Screen: 300 Series Stainless Steel
*This product contains a weighted average lead content less than 0.25% for wetted surface.
