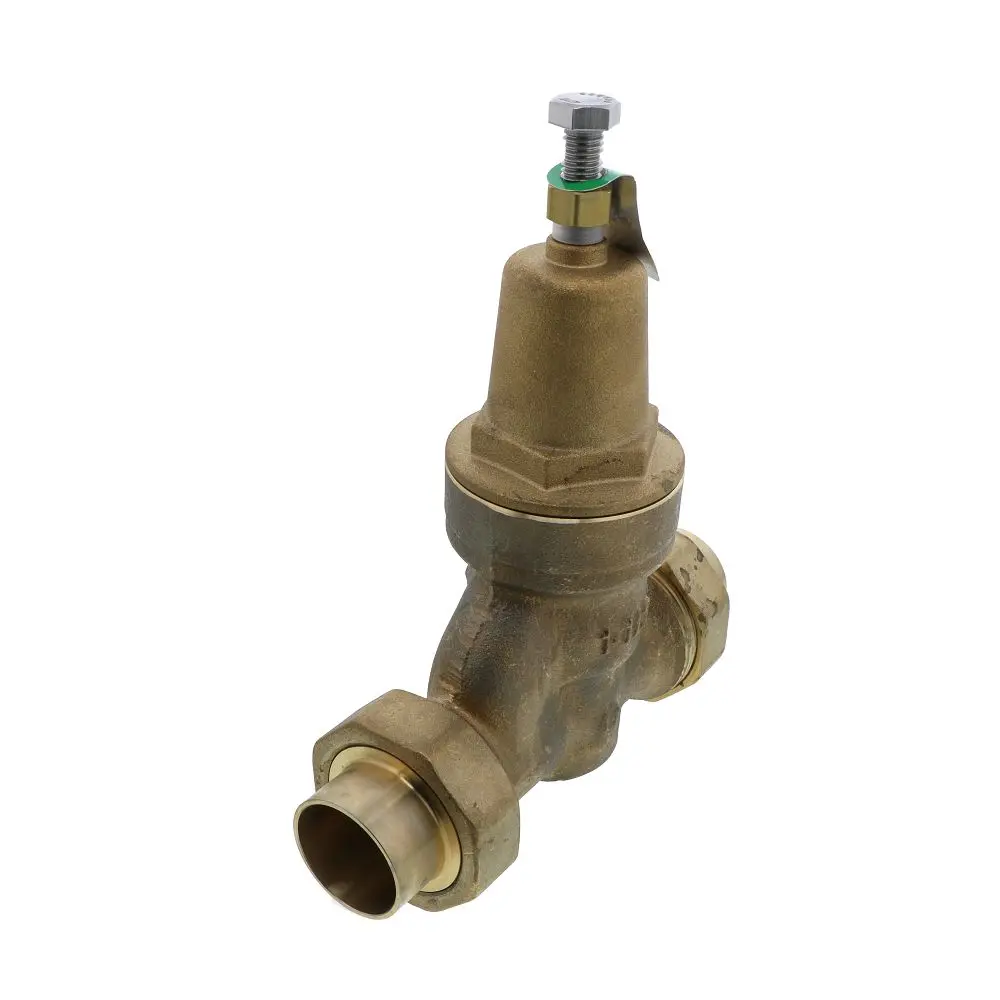

Description
Features:
- Commercial and residential applications
- Double union-solder union inlet and outlet
- Bronze cage
- Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
- Integral stainless steel strainer
- Thermoplastic seat
- Lead-free brass body construction
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
Specifications:
- Size: 1-1/2″
- Double Union – Solder Union Inlet and Outlet
- Max Working Pressure: 300 psi (20.7 bar)
- Adjustable Reduced Pressure Range: 25 to 75 psi (172 – 517 kPa)
- Standard Reduced Pressure Setting: 50 psi (345 kPa)
- Temperature Range: 33°F – 180°F (0.5°C – 82°C)
- Height: 10.5″ max., Width: 8.375″
- Standards: ASSE 1003, ANSI A112.26.2 & CSA Standard B356
