ZONE Offroad 5.5-Inch Complete Suspension Lift Kit for 2016–2022 LWN Models

Description

Fits: 2016 thru 2022 Chevy Colorado/GMC Canyon LWN Duramax Diesel

*Please allow 20+ business days for order processing before shipment*

To properly lift the Colorado/Canyon suspension 5.5″, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5″ of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4″ of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.

Features:

• Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4″ steel construction crossmembers correct lower control arm geometry.
• High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Rear lift block and longer u-bolts for easy installation and level stance.

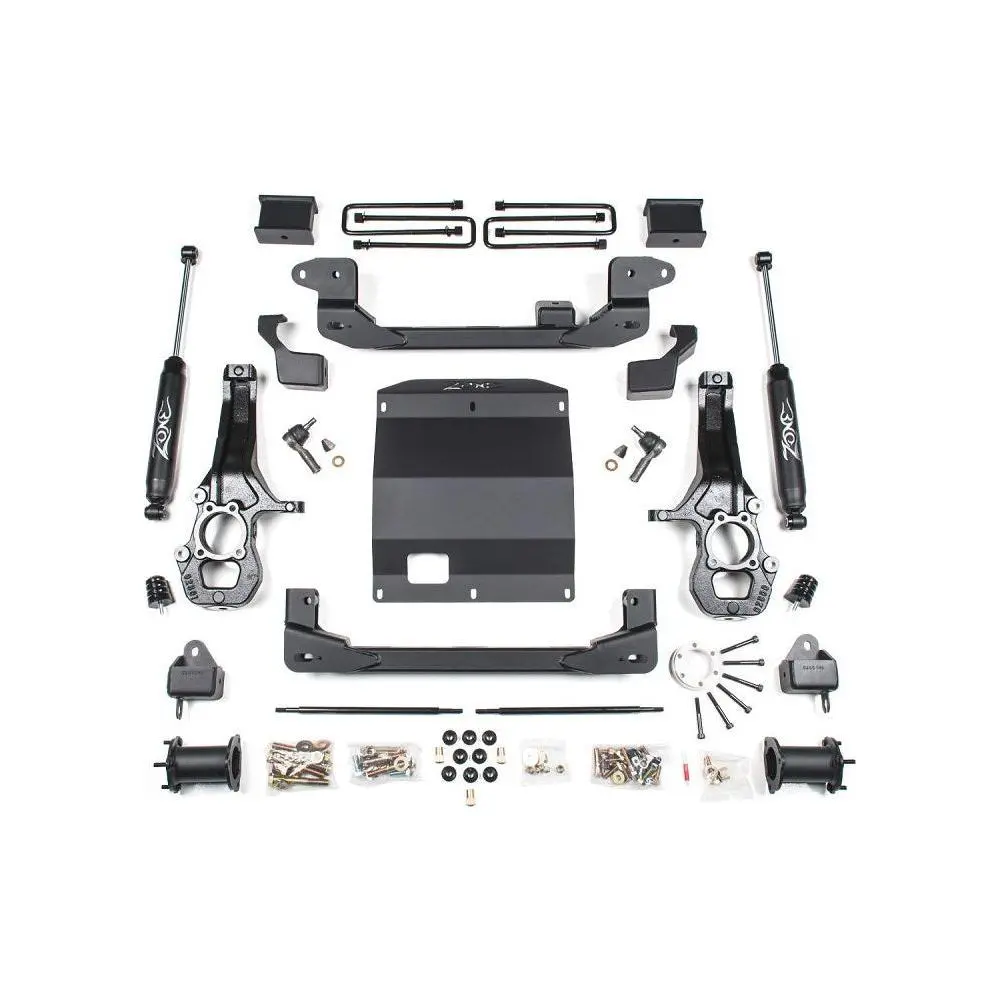

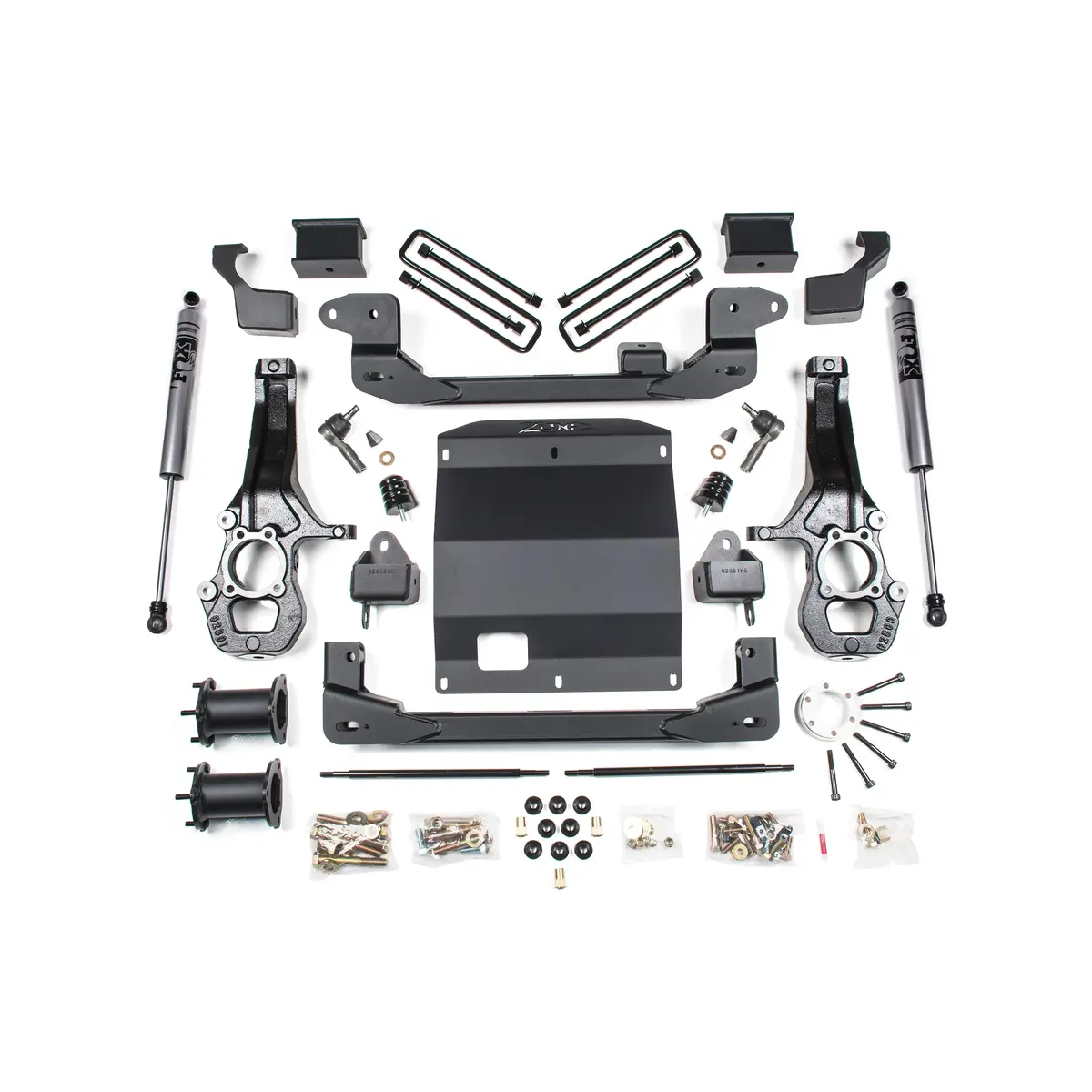

Includes:

• Differential Relocation Brackets
• Frame Crossmembers – Front and Rear
• Strut Spacer – Front
• Rear Lift Block & U-Bolt Kit
• Sway Bar Links – Front
• Skid Plate
• Steering Knuckles

Notes:

• Inner fender trimming may be required
• The factory Electric Power Assisted Steering (EPAS) is sensitive to out-of-round, out-of-balance, overly aggressive tires. Depending on the situation, some oscillating feedback in the steering wheel maybe experienced
• Fits Gas and Diesel models
• Factory wheels cannot be reinstalled
• Will not fit ZR2 Models
