ZONE 5-Inch Lift Kit – Suspension Upgrade for 2011–2019 Duramax LML and L5P Trucks

Description

Fits: 2011 thru 2019 Chevy Silverado/GMC Sierra 2500HD/3500HD LML/L5P Duramax Diesel

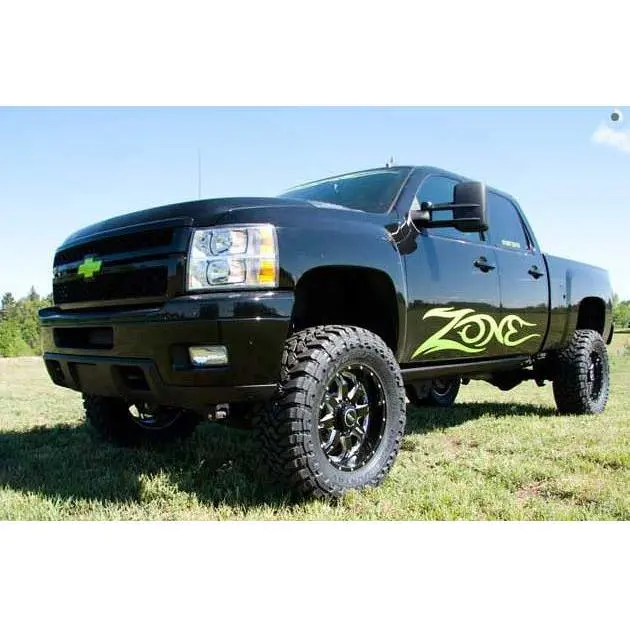

Turn heads and drop jaws with this Zone Offroad 5″ lift kit for your 2011-2019 LML/L5P Duramax Diesel truck that gives you clearance for tires up to 35″. This kit has everything you need to raise and level your 2011 – 2019 Chevy/GM 2500HD /3500HD truck. If you’re going to do it, do it right.

Features:

• Heavy-duty differential skid plate improves off-road protection.
• High-strength, 1/4″ steel construction crossmembers corrects lower control arm geometry.
• High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
• No differential trimming required.
• Rear lift block and longer U-Bolts for easy installation and level stance.

Includes:

• Crossmembers
• Differential drop brackets
• Skid plate
• Steering knuckles
• Torsion bar relocation brackets
• All necessary mounting/installation hardware

Notes:

• This kit will fit Dual Rear Wheel trucks however you will need to source wider and thicker U-Bolts for the rear blocks.
• 2015-2018 models only: 20″ wheels can not be reinstalled due to GM changing the wheel thickness, ID of the 20″ wheels are smaller on 2015-2018 models
• Will fit RWD models, however the front differential related parts in kit will not be used
• Frame bracket modifications required, see installation instructions for more information
• Stock 17″ or 18″ Wheels cannot be re-installed
• Two-piece rear drive shaft? Add carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration
• With 20″ wheels, 5″-6″ backspacing is recommended
• In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration, if this occurs we recommend replacing the front driveshaft with a dual cardan style driveshaft
