WFO 6-Inch Solid Axle Swap Conversion Kit for 2001–2010 LB7, LLY, LBZ, and LMM Duramax

Description

Fits: 2001 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM Duramax Diesel

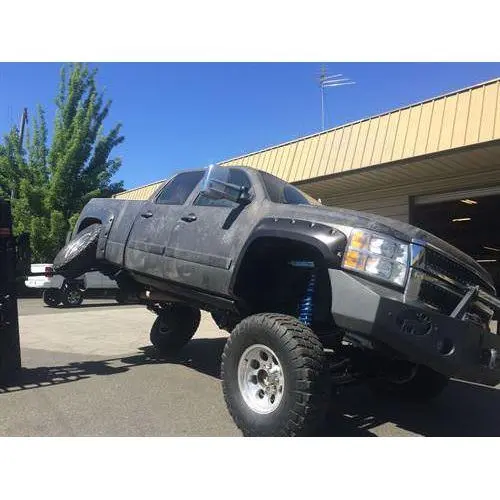

This WFO Concepts 6″ straight axle swap kit is designed to clear 37″ tires running 10″ travel coilovers and offers 5″ of up-travel and 5″ of down-travel from ride height. Designed to fit the popular and easily sourced Ford Super Duty Dana 60 radius arm front axle.

Features:

• Utilizes factory Ford Super Duty track bar, brakes, tie rods & lower draglink
• Compatible with factory GM front driveshaft using supplied u-joint
• Retains factory ABS system
• Great turning radius
• Pushes front axle forward approx. 1″ for tire to fender clearance
• Made in USA

Includes:

• Frame plates
• Crossmember, black powder coated
• Pair of shock towers
• Universal coilover reservoir mounts
• Coilover shock mounts for the axle side
• Bent Draglink
• Flat Pitman Arm tapered hole
• Ford Superduty Radius Arm Links (upper and lower), raw metal
• Metric bolts for the Ford Superduty links on the axle side
• Trackbar bracket for the frame side. (You will use the stock bracket on the axle side)
• Upper bump stops
• Conversion U-Joint for the front driveshaft, 1350 to 3R
• Stainless brake line kit for the front brakes
• ABS Pigtails to convert from Ford axle to Chevy wiring harness

Notes:

• This is the front end kit only
• Requires complete 2005+ Ford Superduty Dana 60 radius arm donor axle
• Coilovers NOT included
• Designed for automatic transmissions, crossmember modifications required for manual transmissions
• Will NOT work with aftermarket twin/compound turbocharger
• Welding/fabrication required (install time typically 40 hours)
• Factory front driveshaft may need to be lengthened
• Steering box brace HIGHLY recommended
• This is a custom order part and CANNOT be canceled, returned, or refunded once order is placed
• At least 5-7 business day lead time before shipment
• Machining process offered to convert the factory Ford unit bearings to a 8 on 6.5 bolt pattern to reuse your current wheels, contact WFO Concepts for more information on this service.
