Norgren R91W-2AK-NLNT030 Non-Relieving Air/Water Pressure Regulator – 1/4″ Female Pipe Thread

Description

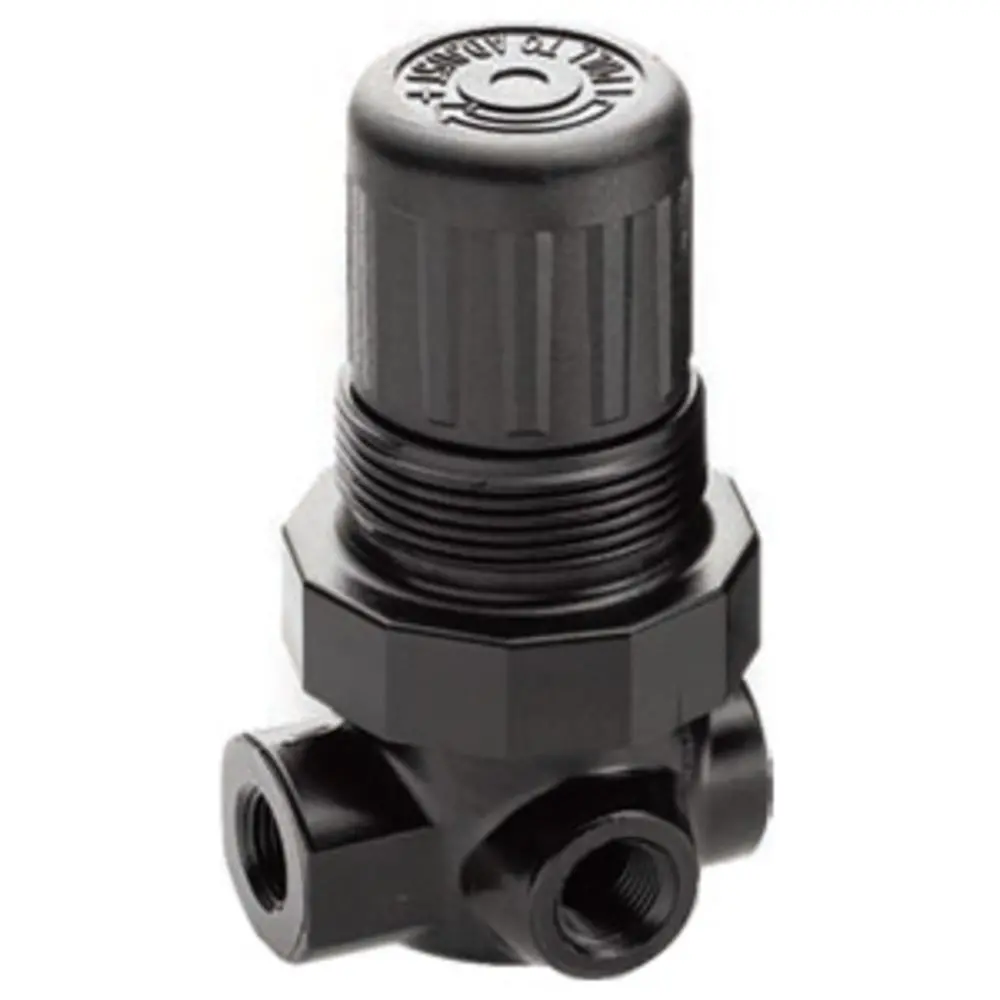

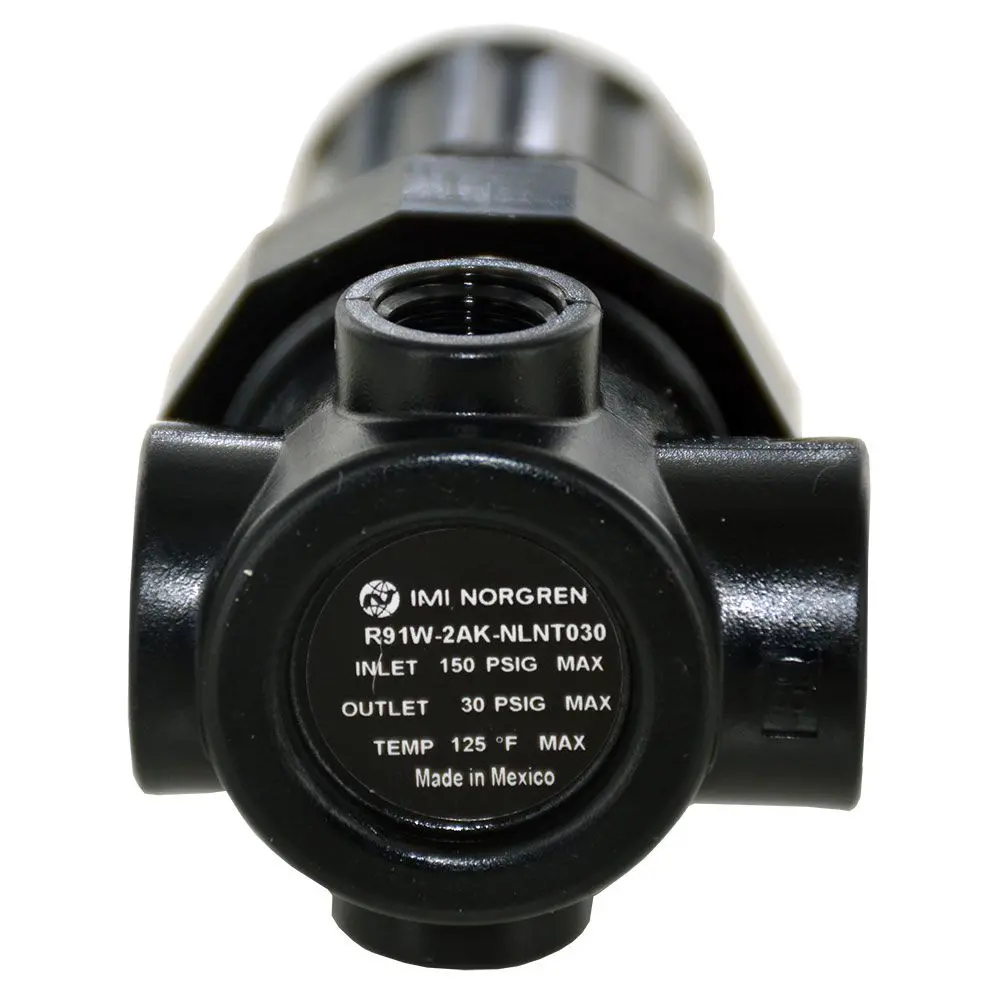

The Norgren R91W-2AK-NLNT030
non-relieving water/air pressure regulator features a compact corrosion resistant design. The R91W-2AK-NLN has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is designed for use with deionized water and potable water systems.
Specifications:

• Designed for use with deionized water and potable water systems
• Non-relieving pressure regulator
• Compact design
• Corrosion resistant construction
• Port size: 1/4″ FPT
• Max inlet pressure: 150 psig (10.3 Bar)

• Max outlet pressure: 125 psig (.7 Bar)

• Outlet pressure adjustable from 5-125 psig (0.3-8.6 Bar)
• Factory Preset to 30 psi
• Max flow rate (air): 24.0 scfm
• Max flow rate (water): 1.75 gpm

NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
