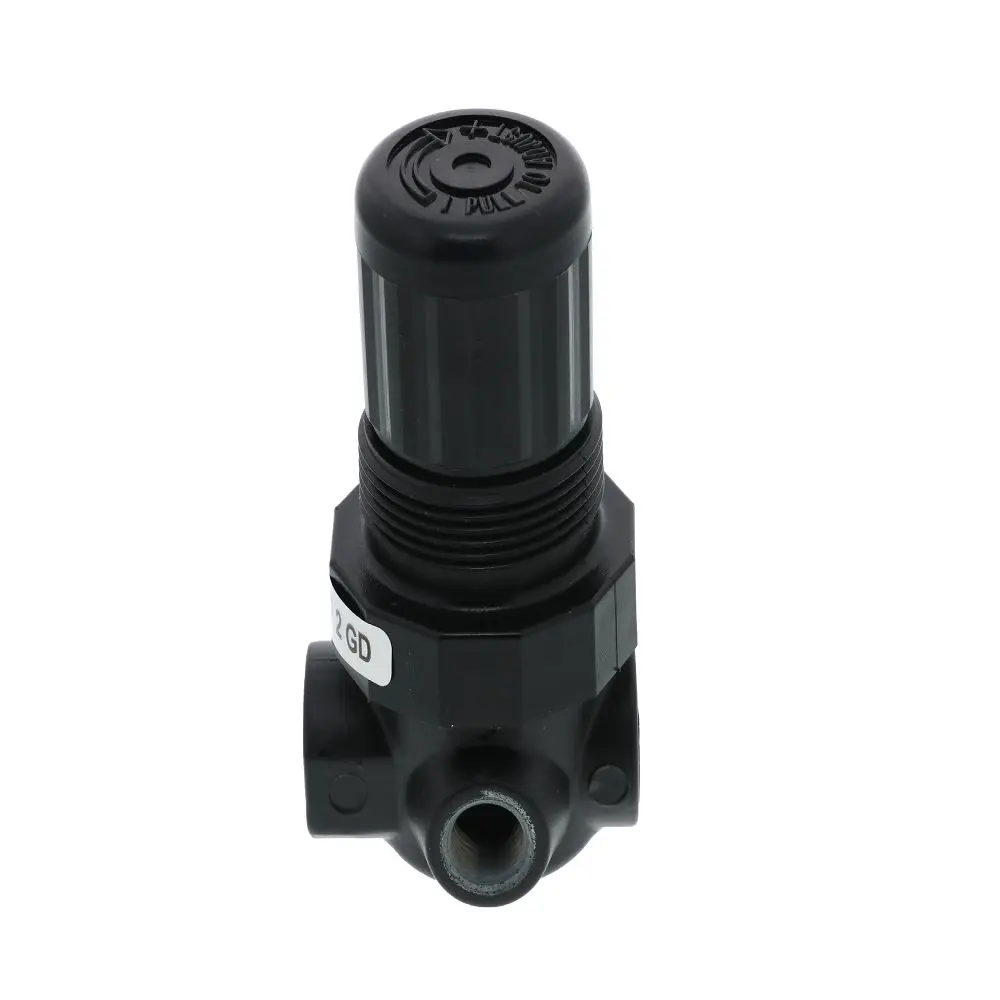

Norgren R07-100-RNKA Air Pressure Regulator – 1/8 Inch Female Pipe Thread, Relieving Type

Description

The Norgren R07-100-RNKA air pressure regulator features a compact corrosion resistant design. The R07-100-RNKA has a snap action pressure adjusting knob that locks the pressure setting when the knob is pushed in. This regulator is suitable for use on compressed air and neutral gases.
Features:

• Compact design
• Corrosion resistant construction
• Zinc body with plastic bonnet
• Relieving model; allows reduction of outlet pressure even when system is dead-ended
• For industrial applications
• Port size: 1/8″ FPT
• Max inlet pressure: 300 psig (28 Bar)
• Max outlet pressure: 100 psig (7 Bar)
• Outlet pressure adjustable from 5-100 psig (0.3-7 Bar)
• Max flow rate (air): 14.0 scfm

NOTE:Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
