Description
The Luminor Blackcomb 4.1 High Output UV System LBH4-251 is classified as a “Residential Crossover” UV water treatment system. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment.
Features:
- Commercial grade axial flow 316L stainless steel reactors. Designed & manufactured to ASME pressure vessel standards allow for easy sleeve change without the need to drain the reactor chamber as in competitive systems.
- Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.
- Increased power density. Incorporates low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour rated life

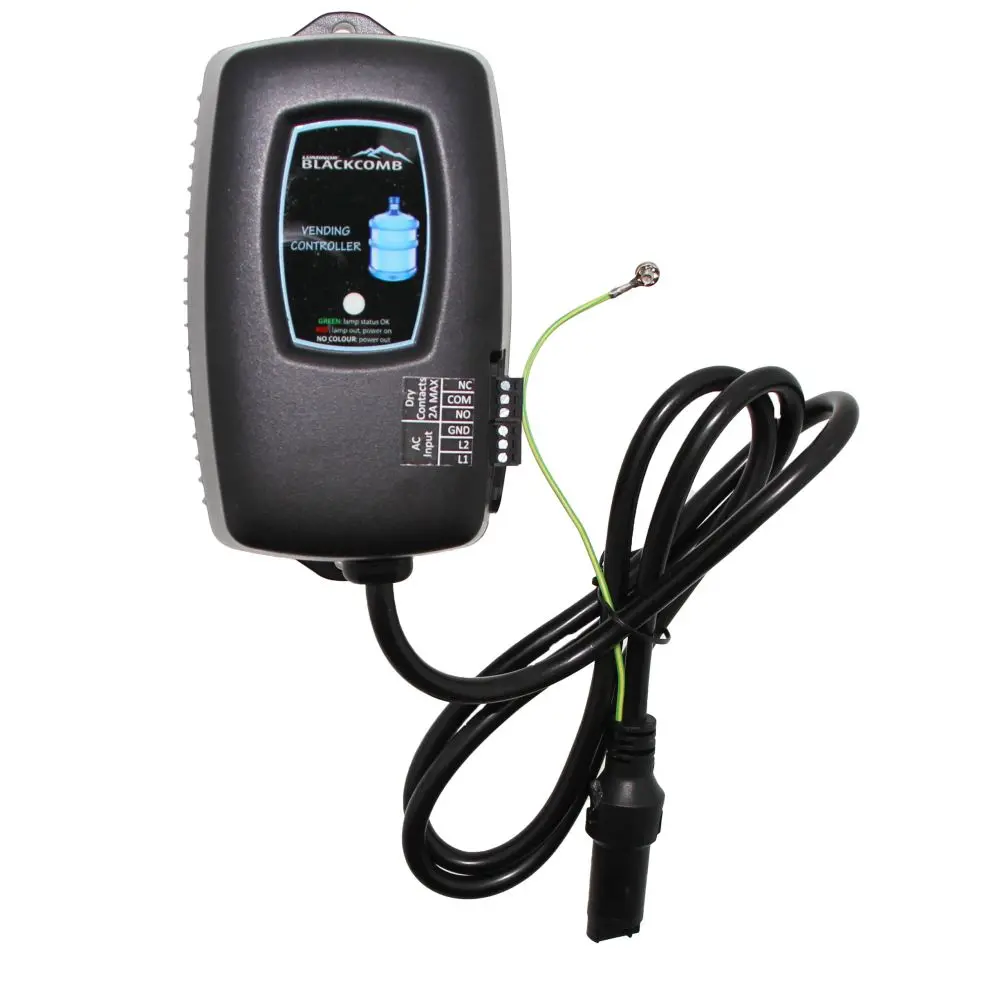

- Audible and visual lamp failure indicators. The Blackcomb controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.
Specifications:
- Port Size: 1″ MNPT
- Flow Rate*: 25 gpm
- Electrical: 110V / 50-60Hz
- Lamp Watts: 67
- Max Operating Pressure: 10 bar (150 psi)
- Operating Temperature Range: 36-104° F (2-40° C)
*Please Note: Flow Rate @ 30 mJ/cm² – Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT
Luminor Blackcomb UV Systems
| Model | LB4-061 | LB4-101 | LB4-201 | LBH4-251 (High Output) | LBV-061 (Vending) |
|---|---|---|---|---|---|
| Flow Rate | 5.8 gpm | 11 gpm | 21 gpm | 25 gpm | 6 gpm |
| Port Size | ¾” MNPT | ¾” MNPT | 1″ MNPT | 1″ MNPT | ¾” MNPT |
| Electrical | 110-230V | 110-230V | 110-230V | 110-230V | 110-230V |
| Lamp Watts | 22 | 39 | 42 | 67 | 22 |
| Max Operating Pressure | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi |
| Operating Temp. Range | 36-104° F | 36-104° F | 36-104° F | 36-104° F | 36-104° F |
