Description

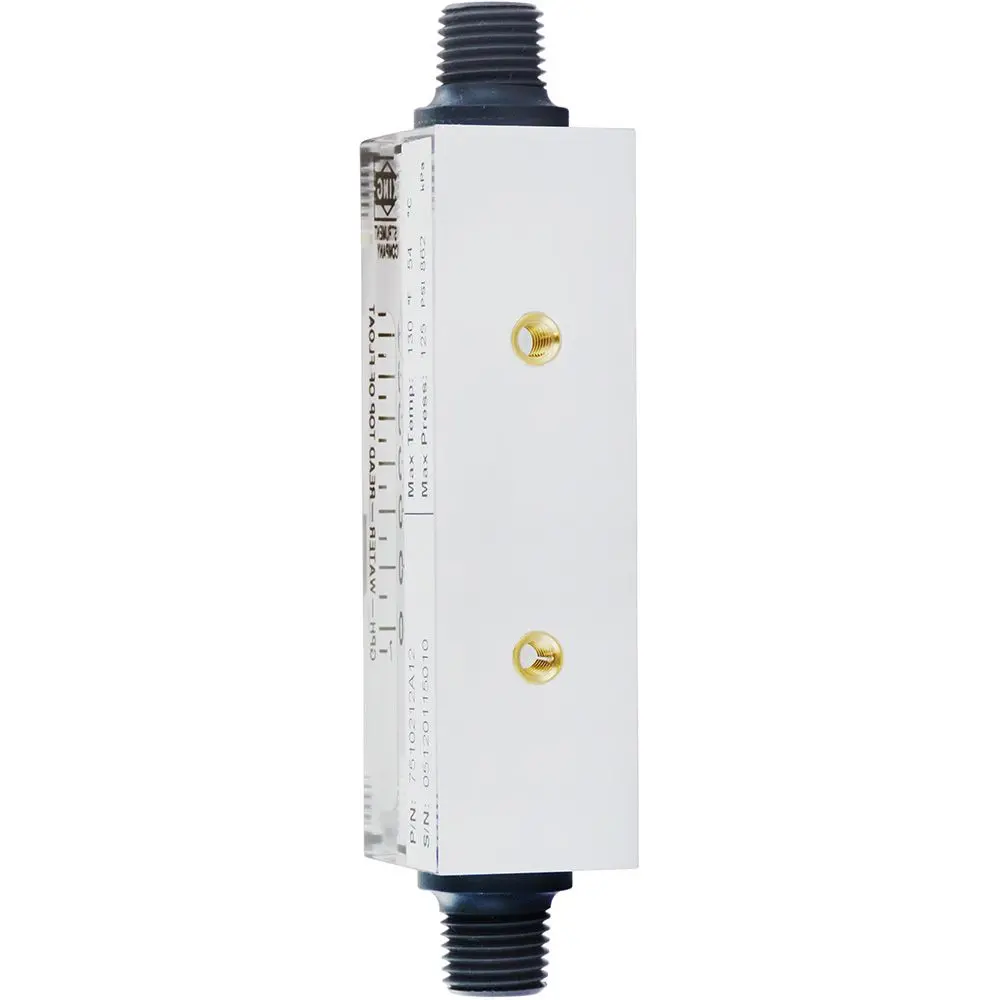

The King 7510 Series Acrylic Tube Flowmeter features a float and tapered tube design, which provides it with longer and more linear scales, better pointer stability, and 40% more accuracy than competing rotometers, all at a competitive price. These flowmeters are precision-machined from durable cast acrylic stock, and internal components and fittings are made with 316L stainless steel. Connections are in-line for easy installation.
Specifications:
- Metering Tube: Machined cast acrylic
- Internal Components Material: 316L SS
- Fitting Material: PVC
- O-Ring Material: EPR
- Water Flow Capacity: 75 GPH
- Connection Size: 1/4″ FNPT
- Accuracy: ±6% of full scale flow
- Turndown: 10:1
- Repeatability: 3% 50mm scale
- Maximum Water Pressure: 125 psig
- Maximum Liquid Temperature: 130°F (54°C)
- Dimensions: 4.75″ x 1″
