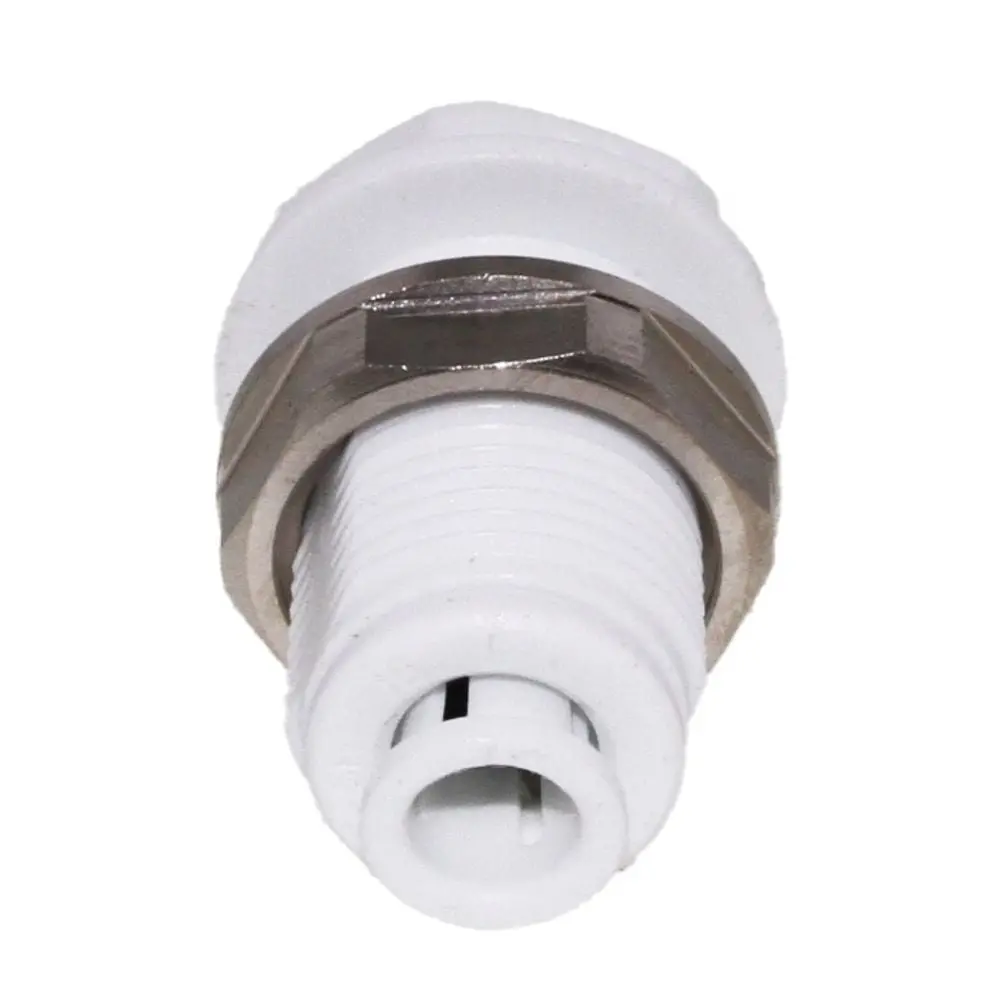

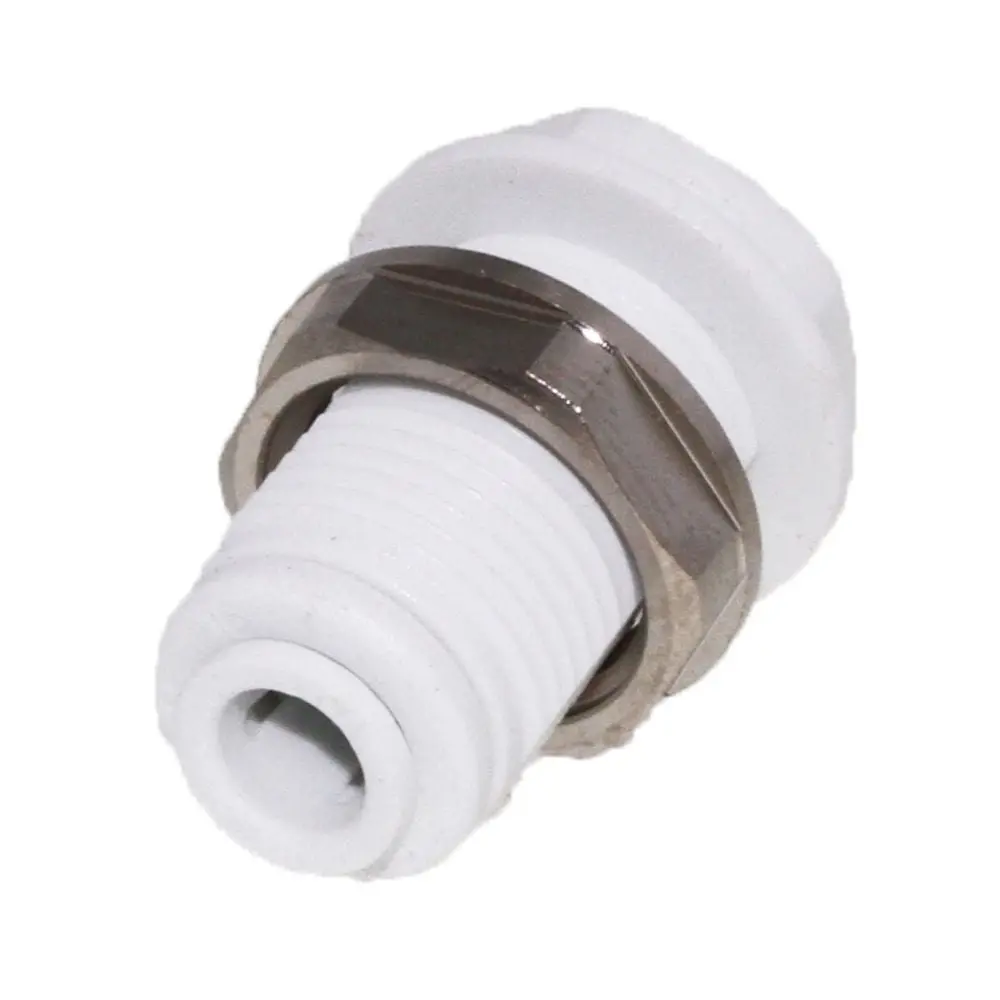

John Guest 1/4″ Acetal Bulkhead Union – White

Description

This John Guest 1/4″ Acetal Bulkhead Union Connector is used for the connection of unequal sized pipe in through-wall applications. Manufactured in white push-fit acetal copolymer with EPDM O-Rings, the fitting is suitable for potable water, intermittent hot water applications (up to 149F max), water treatment and purification applications.

Features:

• Rigid and hardwearing acetal copolymer material with EDPM O-Ring
• Instant push-fit connection and leak tight seal
• Connect, disconnect and reconnect in seconds without tools
• No scale build up improves performance and equipment lifespan
• Superior flow characteristics
• Compatible with LLDPE or soft metal pipe/tubing
• Push-fit Technology creates reliable, leak-free connections
• Used to connect OD tubing through a cabinet wall or bulkhead
• Compatible with plastic or copper OD sized tubing
• Connect, disconnect, and reconnect in seconds without tools
• Food Quality and suitable for potable liquids and pure waterapplications
• Acetal body with food grade EDPM O-Ring
• Made with lead free materials

Working pressure and temperature:

• Max. 150 psi at 70° F
• Max. 100 psi at 150° F

NOTE: NOT suitable for air, pneumatic or vacuum applications


Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing
