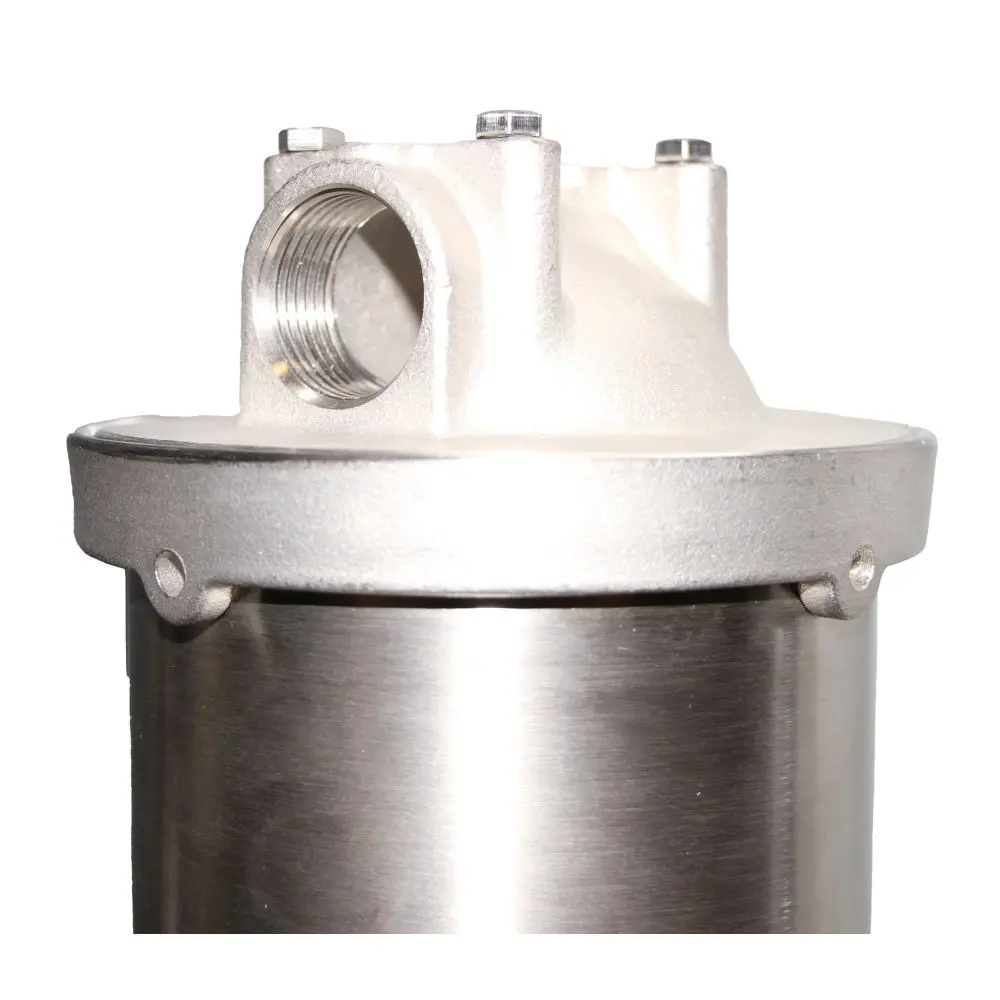

Hydroscientific 20-Inch Single-Cartridge Filter Housing – Fits 4.5″ × 20″ Filters

Description

This HydroScientific™ 20” Single Filter Housing, accepts 4.5” x 20” Filter Cartridge is ideal for commercial and industrial filter application. Made with Heavy duty stainless steel construction for maximum durability, HF45SS Series housings accept 4 1/2” diameter (Big Blue style) Double Open-End (DOE) cartridges. Designed for high temperature and high-pressure applications, the HF45SS series housings ring nut closure provides quick cartridge change outs.

Features:

• Spring loaded Knife Edge Seal
• Commercial and Industrial Filter Application
• Ring Nut Closure for Quick Cartridge Change Outs
• High Temperature and High-Pressure Applications
• Heavy Duty 304 Stainless Steel Construction
• Accepts 4 1/2” diameter (Big Blue style) Double Open-End (DOE) cartridges
• 1/4” FNPT Drain Port Standard

Specifications:

• Body: 304 stainless steel
• Head: 304 stainless steel
• O-Ring: EPDM
• Max. Working Pressure: 300 psi (20.68 bar)
• Max. Operating Temperature: 200° F (93° C)
