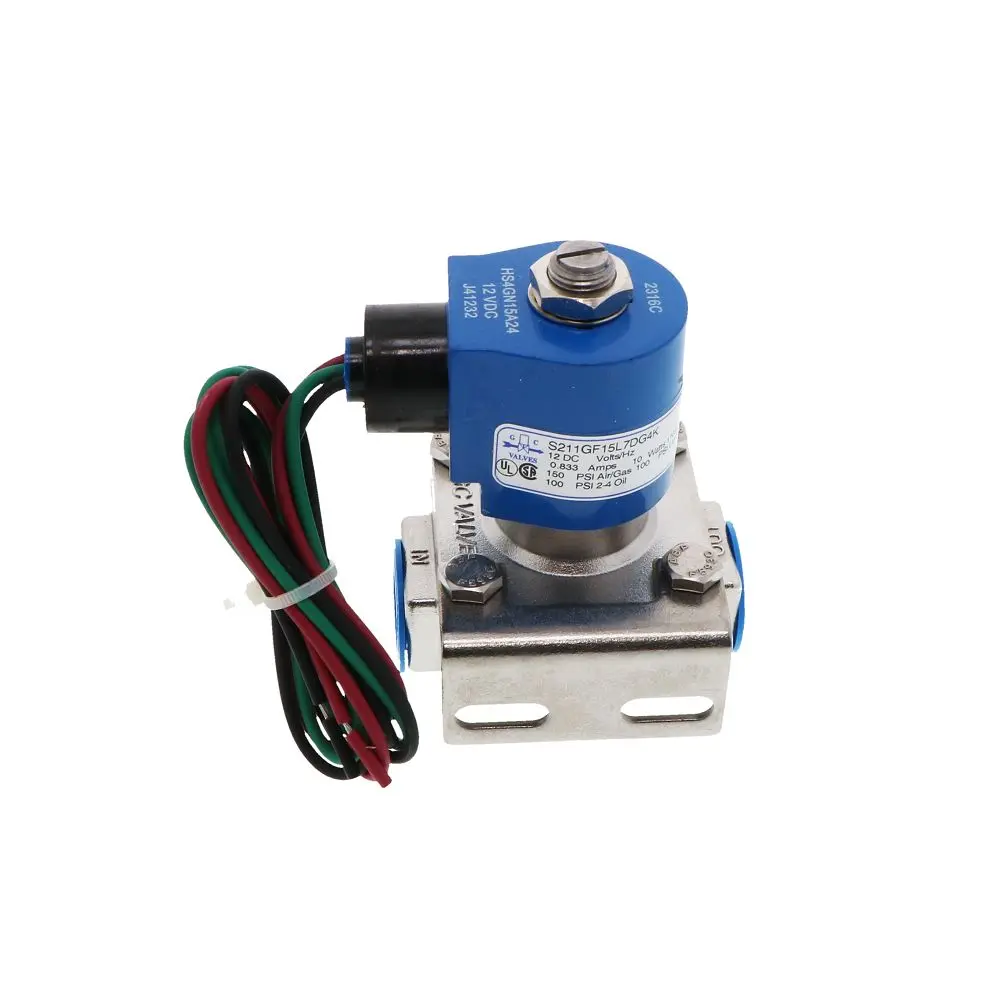

GC Valves S211GF15L7DG4K 12V DC Normally Closed Solenoid Valve — 1/2″ FPT

Description

GC Valves S211GF15L7DG4K Normally Closed Solenoid Valve is designed to allow maximum flow over a wide range of pressures. The internal diaphragm allows smooth opening and closing preventing problems with surge hazards and water hammer. The body is made of stainless steel and the diaphragm and seals are viton.
Applications:

• Car Wash
• General Industrial
• Process Applications
• Water Industries
• HVAC

Specifications:

• Ports: 1/2″ FPT
• Body Material: Stainless steel
• Internal Components: Stainless steel
• Seals: Viton
• Housing: Conduit
• Standard Lead Length: 24 inch
• Voltage Tolerance: ±10% of applicable voltage
• Operating Temperature: 32°F to 125°F (Nominal)
• Duty Cycle: Continuous
• Coil Class: F
• Orifice Size: 5/8″
• Certifications: UL and CSA
• Mounting Bracket
• Made in the USA

Important Note: This Solenoid Valve requires a psi of 5 on the feed side to operate correctly
