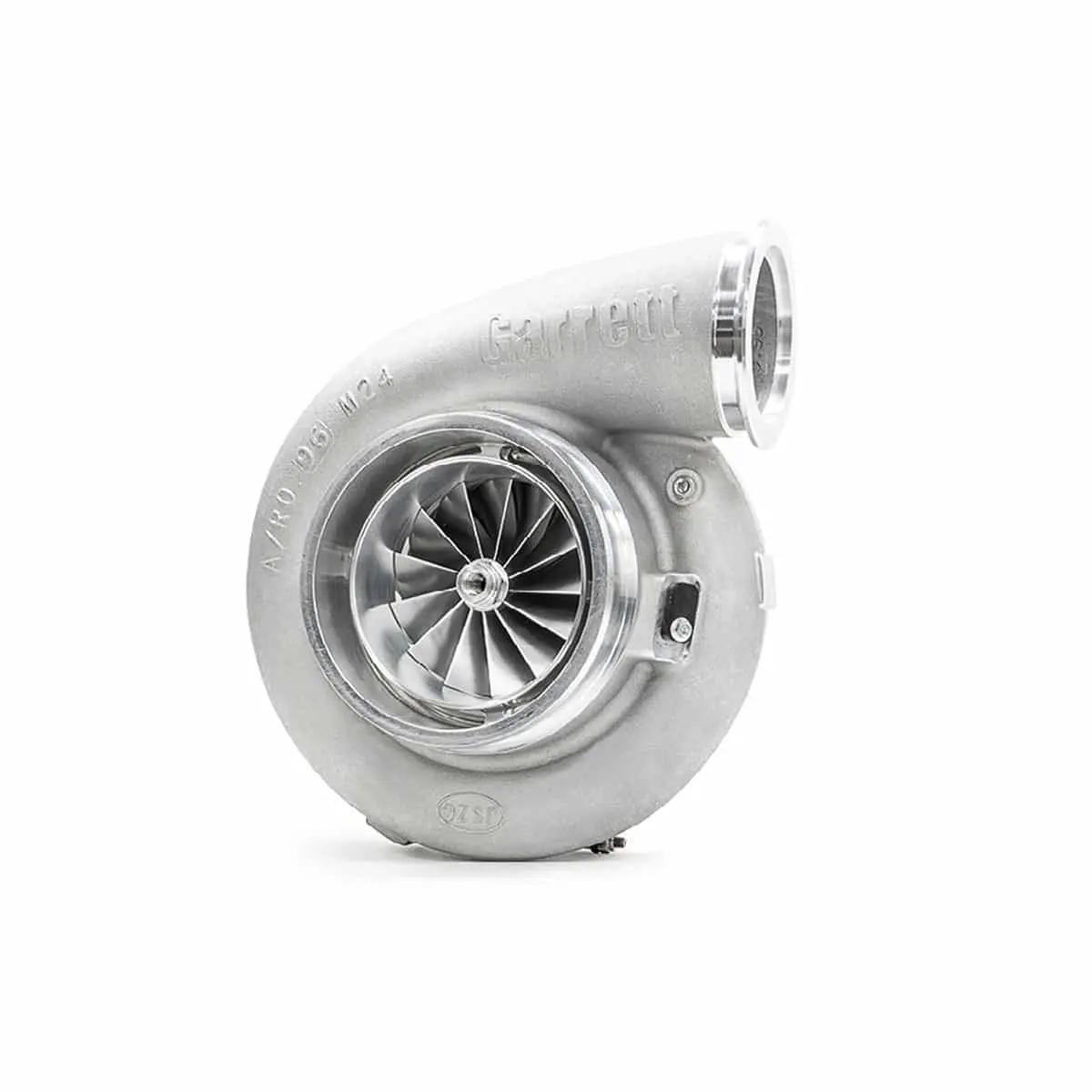

Garrett G57-2350 94mm Turbocharger Super Core Assembly

Description

880547-5032S – G57-2350 94mm Super Core
Manufacturer: Garrett

G-series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer a range of high horsepower performance-boosting solutions for 3.0L – 12.0L engine platforms. 88mm, 94mm, 98mm, 102mm, 106mm compressor inducer sizes produce up to 3000 horsepower for today’s top drag race teams.

Compressor

• Inducer: 94mm
• Exducer: 133mm
• A/R: 0.96

Turbine

• Inducer: 118mm
• Exducer: 112mm
• Trim: 90

Features:

• Supports up to 3000 horsepower
• 118mm inducer turbine wheel
• 28% more turbine flow (compared to GTX) see graph
• One-piece aluminum center housing
• 16mm dual ceramic ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Turbine housing sold individually

Turbine Housing Options:

• 1.09 A/R
• 1.25 A/R
• 1.41 A/R
