Description

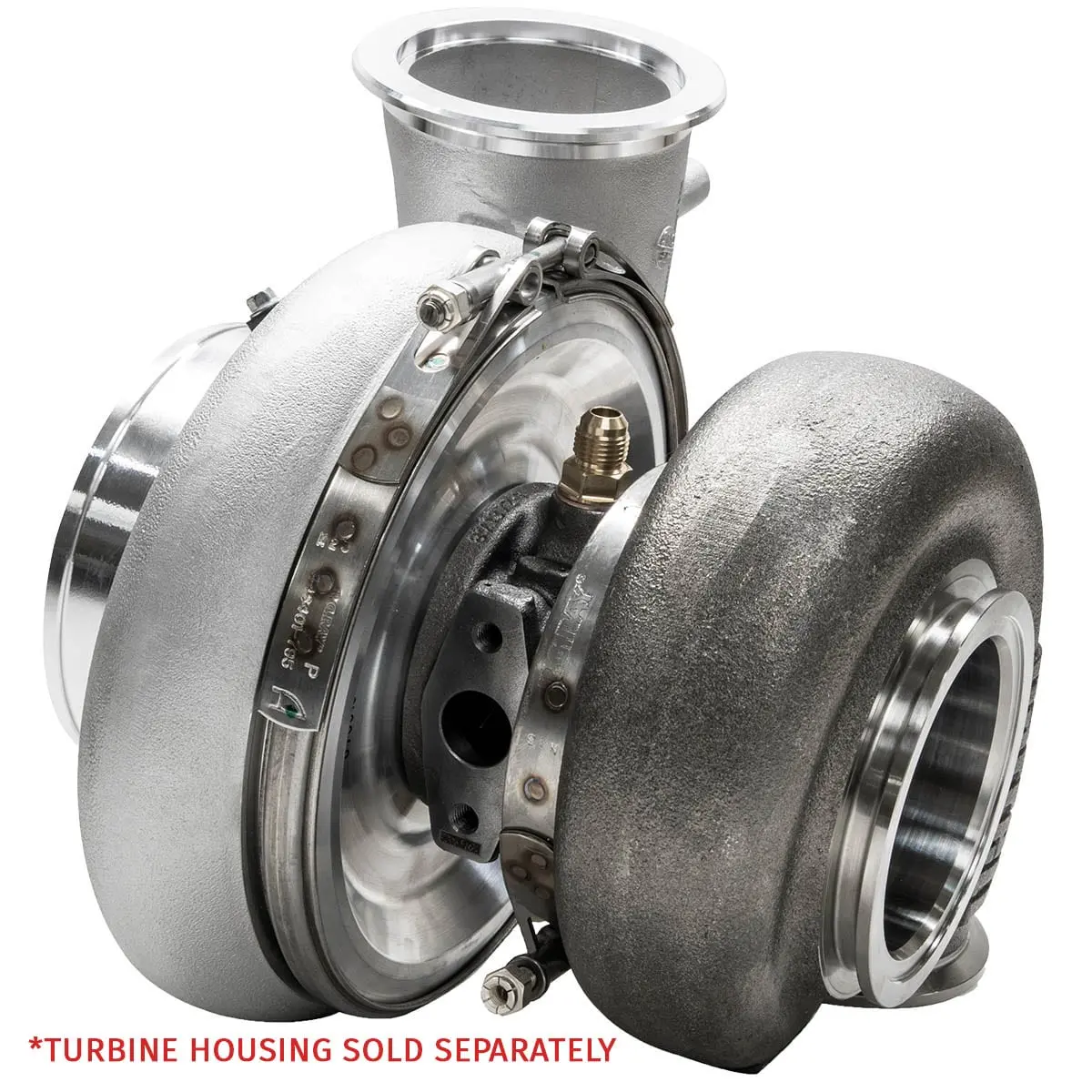

Garrett G45-1500 Super Core
G-series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero provide a wide range of performance boosting solutions for 2.0L – 8.0L engine platforms. Offered in standard rotation, with three compressor inducer options and a variety of T4 twin scroll inlet turbine housing configurations making it easy to select the right turbocharger for your application.
Features:
- G Series compressor aero increases flow up to 24% (compared to GTX4508R)
- 76mm compressor inducer size
- Dual ceramic ball bearing with steel cages
- G Series turbine aero increases flow 14% (compared to GTX4508R)
- Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
- Stainless steel turbine housings available in T4 divided inlet
- Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter
- HP: 750-1500
- Disp: 2.0L – 8.0L
Compressor:
- Inducer: 76MM
- Exducer: 109MM
- Trim: 49
- A/R: 0.85
Turbine:
- Inducer: 89MM
- Exducer: 82MM
- Trim: 84
This is a super-core and does not come with a turbine housing. The below turbine housing part numbers are built to fit the G45.
Turbine Housings:
- 757707-0023 (1.01 A/R)
- 757707-0024 (1.15 A/R)
- 757707-0025 (1.28 A/R)
- 757707-0026 (1.44 A/R)
