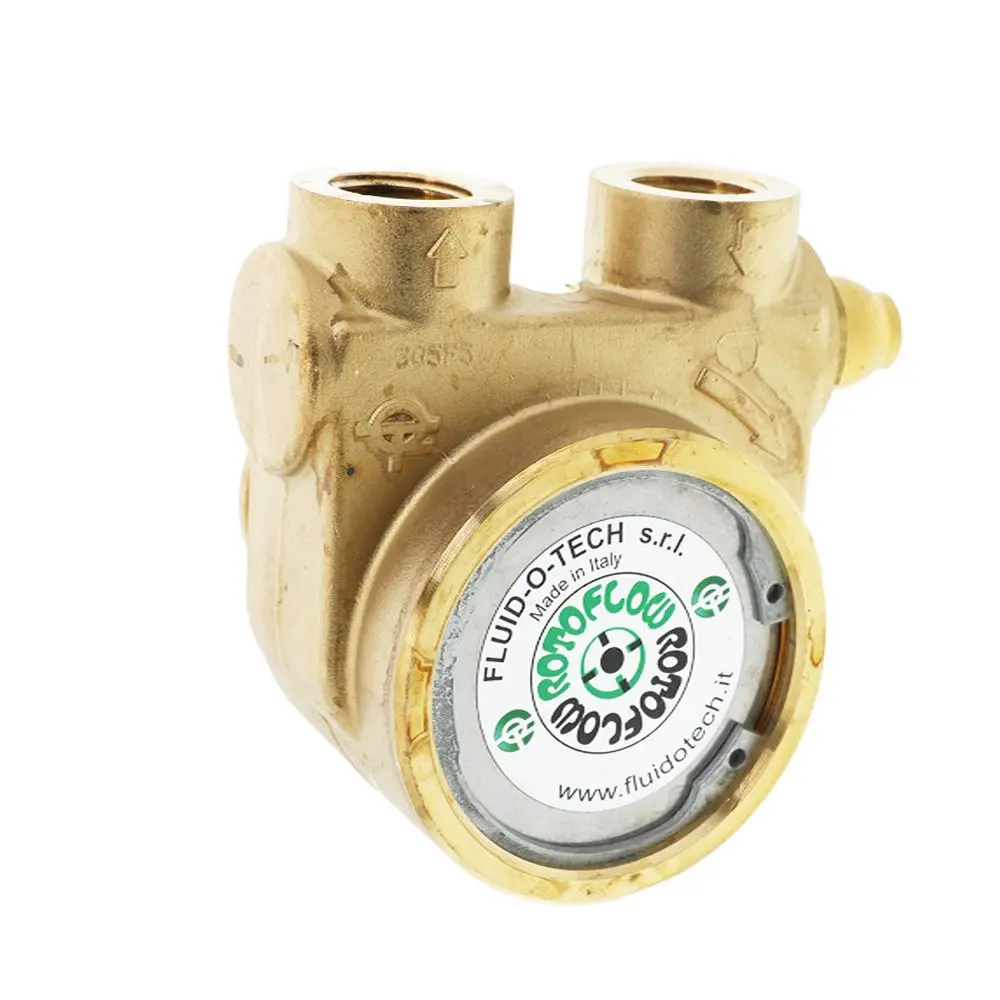

Fluid-O-Tech Lead-Free Brass Rotary Vane Pump – 190 GPH, 1/2-Inch NPT, Brass Key

Description

Fluid-o-Tech PV601-225 is a 225 gallon per hour rotary vane pump. The PV601-225 has an NSF approved Buna-N seal, and comes with a slotted shaft and brass key. The pump housing is constructed out of lead-free brass, and comes with a band clamp mount and a pressure bypass.
Specifications:

• Flow rate: 225 gallons per hour
• Material: lead-free brass housing, graphite chamber
• 1/2″ NPT ports
• Clamp Mount: 4.2 lbs. (1.9kg)
• Max Static Pressure: 290 PSI
• Max Operating Temperature: 158°F
• Max Speed: 1725 RPM

Applications:

• Beverage Vending Machines
• Booster Systems
• Cooling Systems
• Espresso Coffee Machines
• Post Mix Drink Dispensers
• Water Dispensers
• Water Treatment
