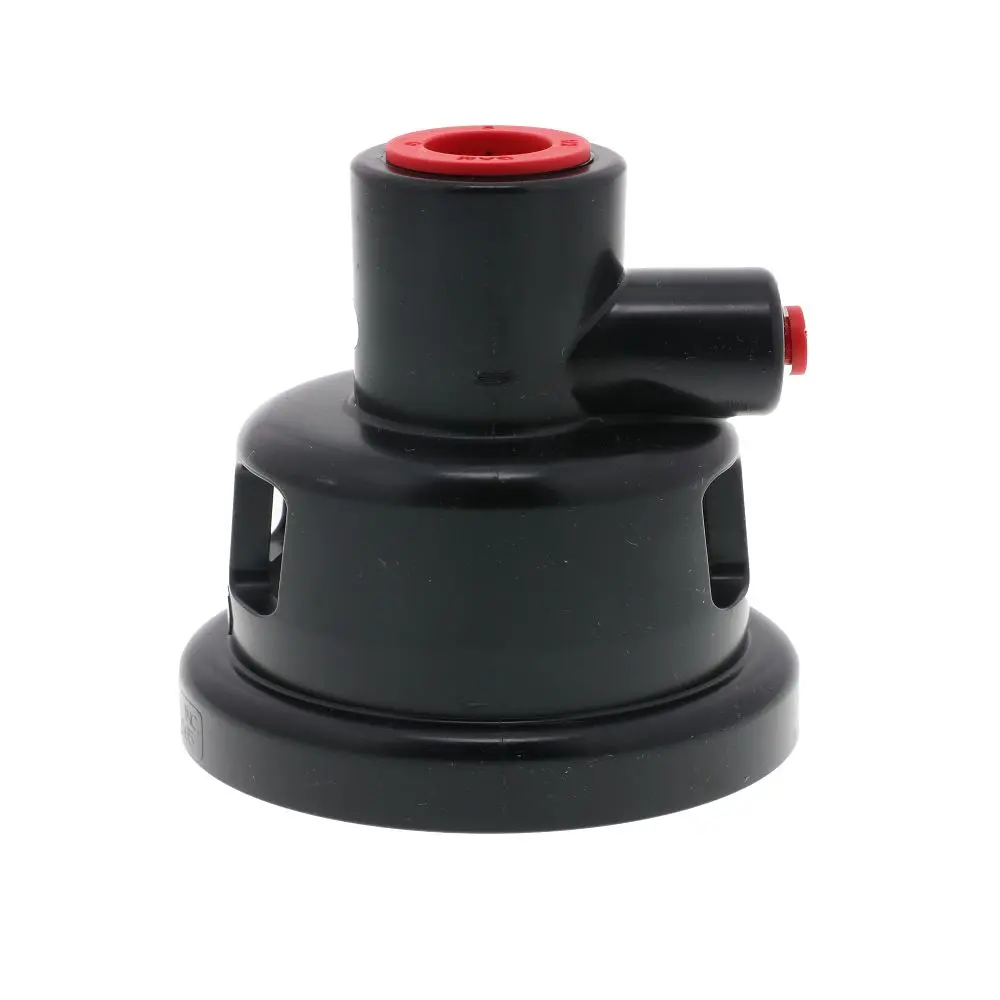

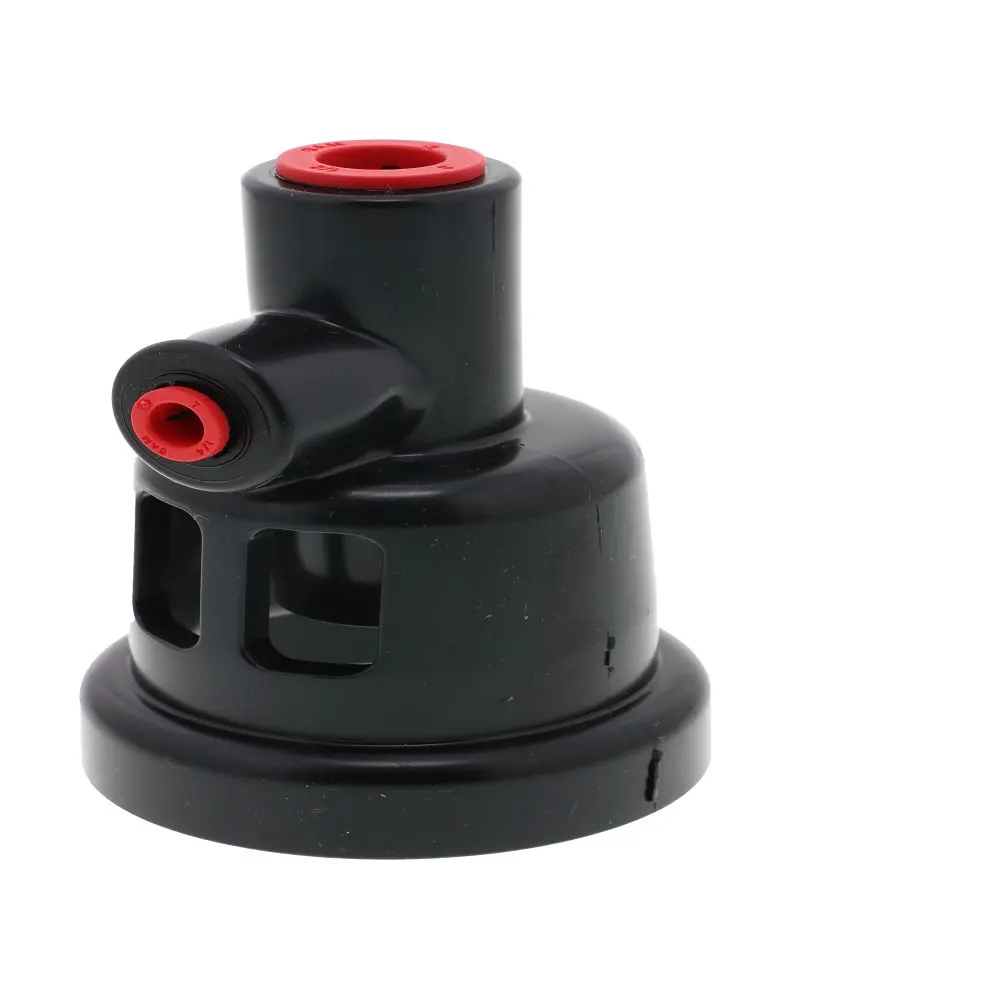

Drain II ABS Air Gap Assembly for Reverse Osmosis Systems

Description

The Drain II Air Gap Adapter provides a splash-free dual air gap connection for installing up to 2 effluent producing water systems.
Specifications:

• Dimensions: 5-1/8″ L w/ elbow fitting (4″ w/out elbow) x 2-3/4″ OD bottom
• Constructed of NSF approved PVC
• John Guest Speedfit® (JG) for quick installation
• Side Port Inlet: 1/4″ JG or 3/8″ JG quick connect or no sideport
• Top Port Inlet: 1/2″ JG
• Easily attaches to either 1.5″ or 2″ Standpipes
• Available in ABS or PVC
• Can be permanently bonded to PVC or ABS standpipe with PVC Cement
• Meets national plumbing code standards
• Optional 45° Barb Fittings for optimal drain line connections available in 3/8″ ID Barb, 5/8″ ID Barb or 1/2″ ID Barb.
