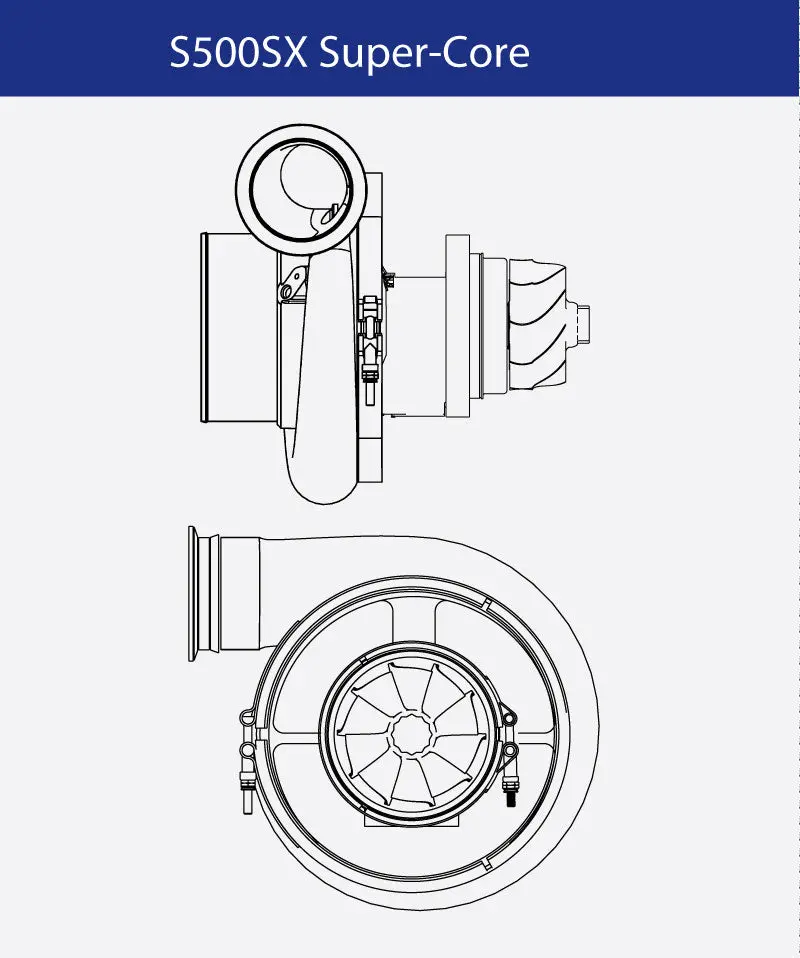

BorgWarner S500SX Super Core

Part Number: 179190

90.67mm Inducer – 99.08mm Turbine Wheel

---

BorgWarner S500SX Super Core Features:

• Twin hydrodynamic journal bearings
• Extended Tip Technology Compressor Wheel
• Available Twin Scroll and Open Flow Turbine Housing
• Adjustable compressor and turbine housing orientation
• Compressor cover recirculation grooves
• Optimized compressor inlet geometry
• Dual machined compressor cover discharge connection (v-band or hose bead)
• Premachined speed sensor mounting boss

---

Super Core Specifications

Comp Wheel Inducer90.67mmTurbine Wheel O.D.109.73mmTurbine Wheel Exducer99.08mm

---

Available Turbine Housings

Part #	A/R	Inlet Configuration		Outlet Configuration
179159	0.85	Volute, Open Flow	T6 Inlet	Half Marmon
179160	1.00
179161	1.15
178498	1.30
179162	1.45
179478	1.15	Volute, Twin Flow	T6 Inlet	Half Marmon
179192	1.45
179193	1.60
