BD Diesel Extruded Transmission Oil Cooler for LB7–LMM Duramax (2001–2010)

Description

Fits: 2001 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ/LMM Duramax Diesel

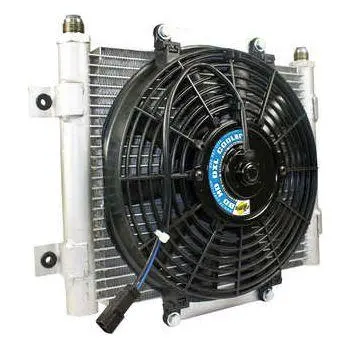

BD’s Xtruded Transmission Oil Coolers uses the same high efficiency Micro Extruded bar technology that is in our air-to-air Charge Air Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300 psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD’s Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages are available to accommodate 5/16, 3/8, 1/2 and 5/8 transmission cooler lines and come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

Features:

• 22% more cooling over other designs
• 200 Micro Extruded passages
• Large surface area to transfer heat for external air flow cooling
• Turbulent oil flow design promotes a more complete cooling
• Large 5/8-inch ports prevents inlet/outlet restriction
• Furnace brazed rails have been tested to 300psi of pressure
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• 33,930 BTU/HR and in excess of 30,000 GVW!
• Kits complete with all fittings, clamps, hoses and hardware
• Build-It-Yourself galvanized bracket kit for quicker and cleaner installation – no wasting time fabricating brackets out of scrap metal
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Chevy Allison 1000 – 1/2-inch Cooler Lines

Parts Warranty:

• 12-Months
• 24,000 Miles

Notes:

• Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
• When replacing the transmission cooler, you will lose about 1-2 quarts of transmission fluid. We recommend using Transynd Transmission Fluid
